X-ray screening

43 products from Smiths Detection

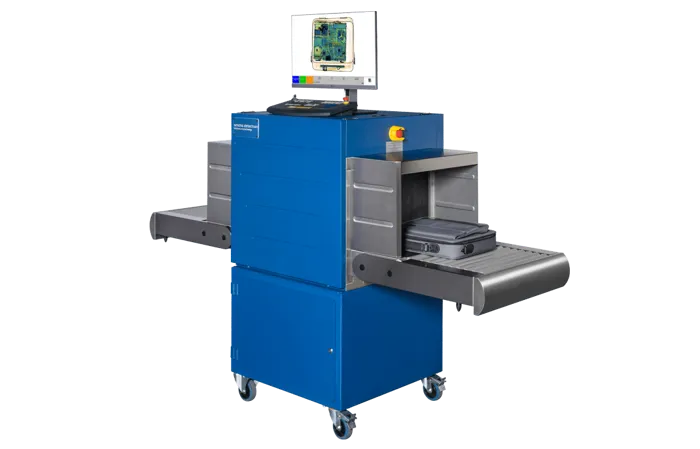

Smiths Detection HI-SCAN 5030C
Smiths Detection

HI-SCAN 5030CAvailable upon request

Compact & mobile X-ray inspection system

Product Description:

Compact and transportable screening for entrances and mailrooms

The HI-SCAN 5030C is a lightweight, mobile X-ray scanner for screening mail, personal belongings and small parcels in commercial and public buildings. It is designed for checkpoints, courthouses, schools, event venues and mailroom environments where space and mobility are important.

Feature Highlights

  • Lightweight and transportable
  • Advanced HiTraX 3 electronic platform
  • Excellent image resolution and easy operation
  • On-board storage and configurable options

Technical Specification

Tunnel size: 532 (W) x 328 (H) mm
Max. object size: 530 (W) x 320 (H) mm

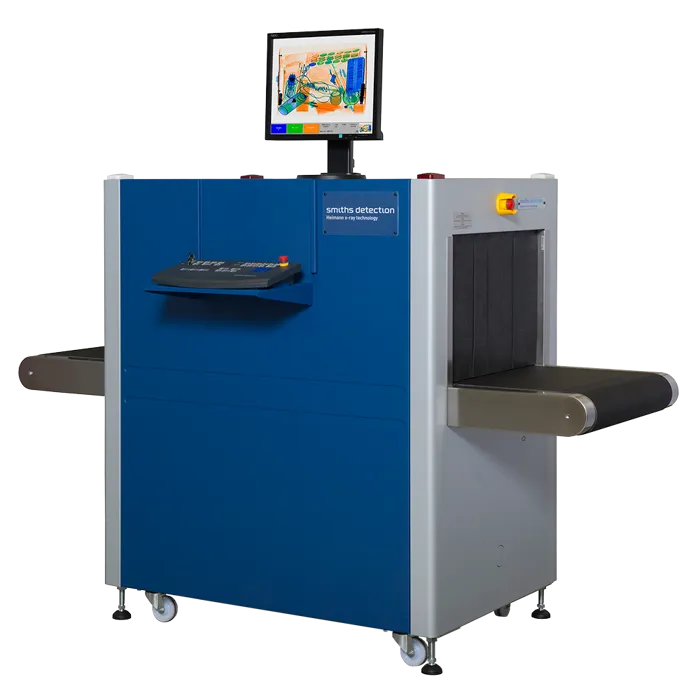

Smiths Detection HI-SCAN 6040C
Smiths Detection

HI-SCAN 6040CAvailable upon request

Airport quality screening for buildings & events

Product Description:

High-quality X-ray screening for bags and parcels

HI-SCAN 6040C is designed to screen bags, parcels and other objects for prohibited or dangerous items at building entrances and event locations. Its smart image display functions help operators distinguish organic and inorganic threats quickly and reliably.

Feature Highlights

  • Designed for building entrances and event screening
  • High reliability and strong image quality
  • Easy operation with real-time diagnostics
  • Upgradable electronics and software

Technical Specification

Dimensions: 2,004 (L) x 850 (W) x 1,395 (H) mm
Max. object size: 615 (W) x 410 (H) mm
Weight: approx. 460 kg

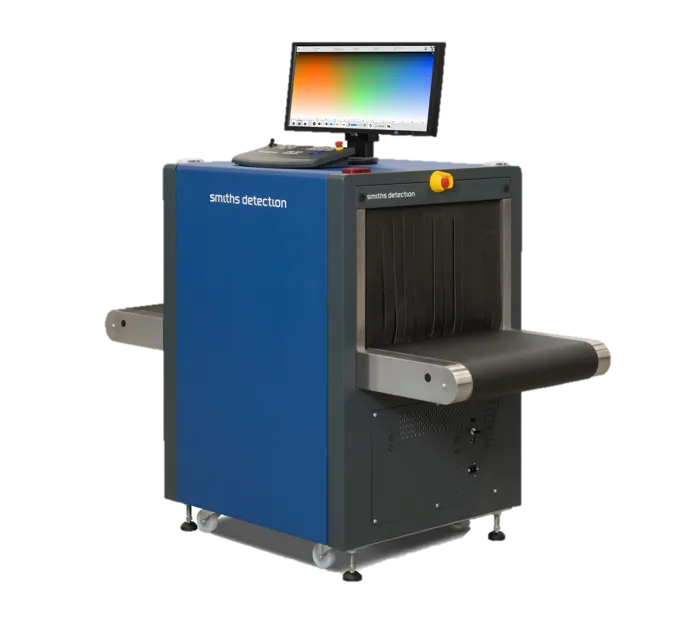

Smiths Detection SDX 6040
Smiths Detection

SDX 6040Available upon request

Mobile single-view X-ray screening

Product Description:

Redefining mobility, single-view imaging and precision detection

The SDX 6040 is engineered for operations requiring fast, effective screening of personal belongings and small parcels. With a slim footprint and larger casters, it is suitable for mobile deployment across high-traffic and security-sensitive sites.

Feature Highlights

  • Superior image quality and smart display features
  • 100% view of scanned items
  • Fully mobile 80 cm wide platform
  • HiTraX 3 software platform and cybersecurity features

Technical Specification

System dimensions: 1,730 (L) x 797 (W) x 1,245 (H) mm
Tunnel dimensions: 620 (W) x 420 (H) mm
System weight: approx. 400 kg

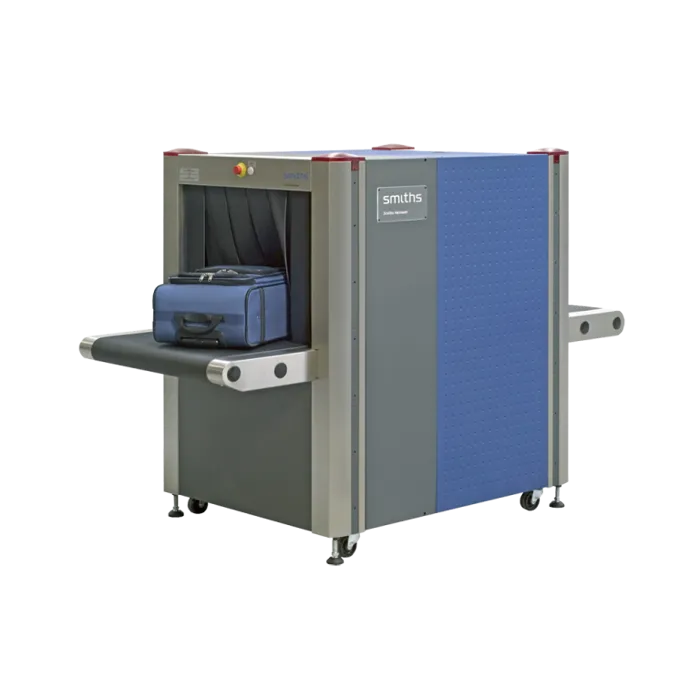

Smiths Detection HI-SCAN 7555si
Smiths Detection

HI-SCAN 7555siAvailable upon request

Advanced X-ray inspection

Product Description:

Large tunnel, high-resolution X-ray inspection

With large tunnel dimensions and an advanced multi-energy X-ray generator, the HI-SCAN 7555si provides high quality image analysis for baggage and parcels. It is suitable for items exceeding standard hand baggage dimensions.

Feature Highlights

  • High-resolution CRISP sensor technology
  • HiTraX II platform with extended services
  • High-resolution image display
  • Steel penetration up to 37 mm and wire detectability up to AWG 41

Technical Specification

Dimensions: 2,120 (L) x 985 (W) x 1,445 (H) mm
Max. object size: 750 (W) x 550 (H) mm
Weight: approx. 580 kg

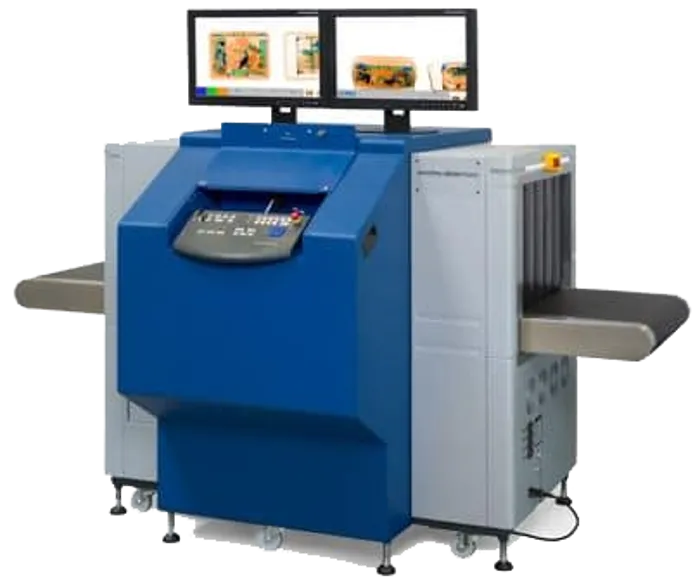

Smiths Detection HI-SCAN 6040 DV
Smiths Detection

HI-SCAN 6040 DVAvailable upon request

High resolution, dual-view X-ray screening

Product Description:

Dual-view inspection for aviation and urban security checkpoints

HI-SCAN 6040 DV is an advanced dual-view X-ray inspection system for automatic detection of explosives and liquids. Dual-view technology improves operational efficiency by reducing the need to reposition or rescan objects.

Feature Highlights

  • ECAC EDS CB C1 and LEDS Standard 2 Type C approved
  • Smart display functions
  • Easy integration into tray handling systems
  • High level of cyber security

Technical Specification

Dimensions: 2,340 (L) x 1,314 (W) x 1,372 (H) mm
Tunnel dimensions: 620 (W) x 420 (H) mm
Weight: approx. 820 kg

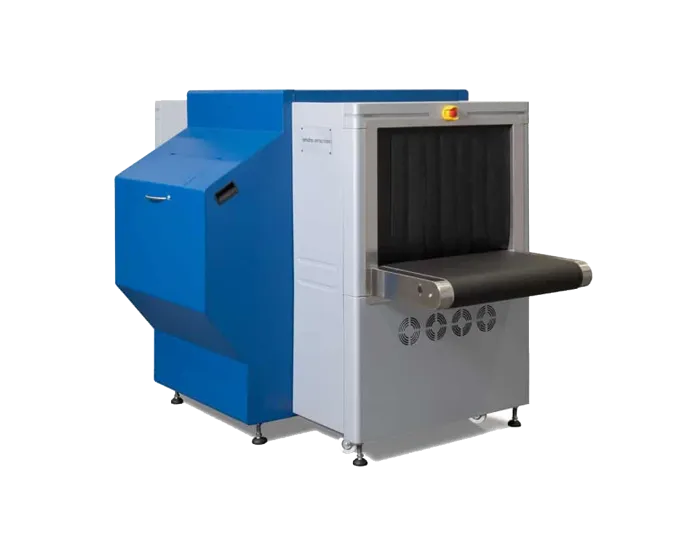

Smiths Detection HI-SCAN 7555 DV
Smiths Detection

HI-SCAN 7555 DVAvailable upon request

High resolution, dual-view X-ray screening

Product Description:

Dual-view screening for airports, urban security and ports

HI-SCAN 7555 DV is an advanced dual-view X-ray inspection system for automatic explosives detection. It offers superior image quality, smart display functions and straightforward integration into screening lanes.

Feature Highlights

  • ECAC EDS CB C1 approved
  • Automatic explosives detection capability
  • Optional automatic weapon and currency detection
  • High cyber security and compact footprint

Technical Specification

Dimensions: 2,590 (L) x 1,450 (W) x 1,512 (H) mm
Tunnel dimensions: 755 (W) x 555 (H) mm
Weight: approx. 1,050 kg

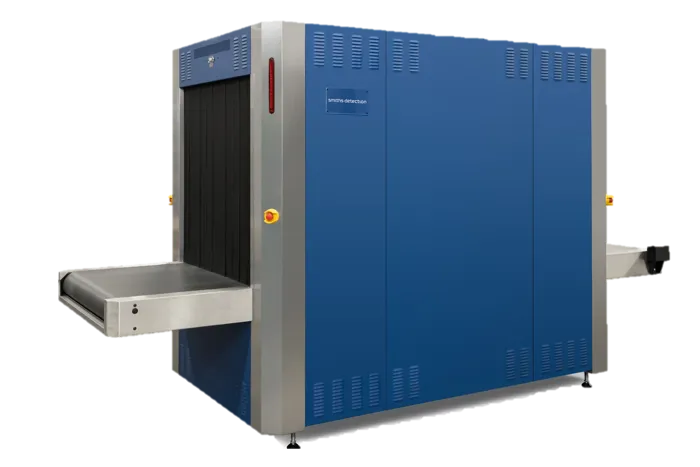

Smiths Detection SDX 100100 HC
Smiths Detection

SDX 100100 HCAvailable upon request

Efficient screening for oversized baggage and break-bulk freight

Product Description:

High conveyor screening for large and heavy items

The SDX 100100 HC is purpose-built for oversized baggage and break-bulk freight. Its 100 x 100 cm tunnel and 200 kg conveyor capacity enable efficient inspection of large items in airports, customs facilities and parcel services.

Feature Highlights

  • High conveyor design for manual handling
  • 160 kV generator with HiTraX 3 platform
  • iCMORE option for weapons and lithium batteries
  • Wire resolution up to AWG 40 and steel penetration up to 37 mm

Technical Specification

Dimensions: 3,591 (L) x 1,410 (W) x 1,992 (H) mm
Maximum object size: 1,000 x 1,000 mm
Conveyor load: 200 kg

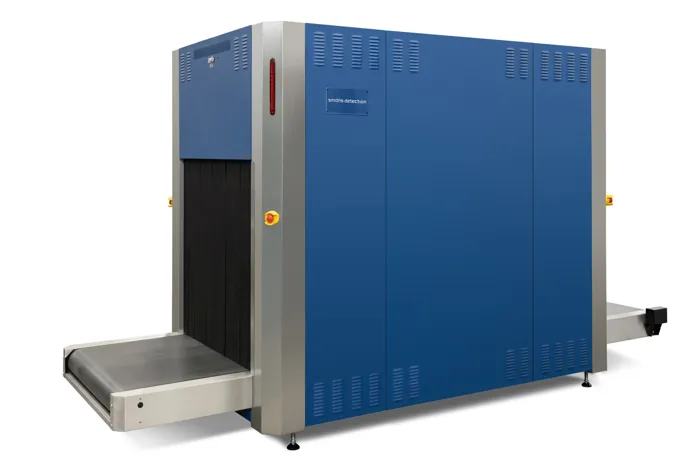

Smiths Detection SDX 100100 LC
Smiths Detection

SDX 100100 LCAvailable upon request

Low conveyor screening for oversized baggage and freight

Product Description:

Low conveyor height for integration with feed and discharge systems

The SDX 100100 LC is engineered for environments where space is limited but oversized baggage and freight screening is essential. Its low conveyor height simplifies integration with handling systems and supports efficient heavy-goods flow.

Feature Highlights

  • Low conveyor height for efficient freight handling
  • 160 kV generator with HiTraX 3 platform
  • iCMORE option for enhanced threat detection
  • Wire resolution up to AWG 40 and steel penetration up to 37 mm

Technical Specification

Dimensions: 3,591 (L) x 1,410 (W) x 1,992 (H) mm
Maximum object size: 1,000 x 1,000 mm
Conveyor load: 200 kg

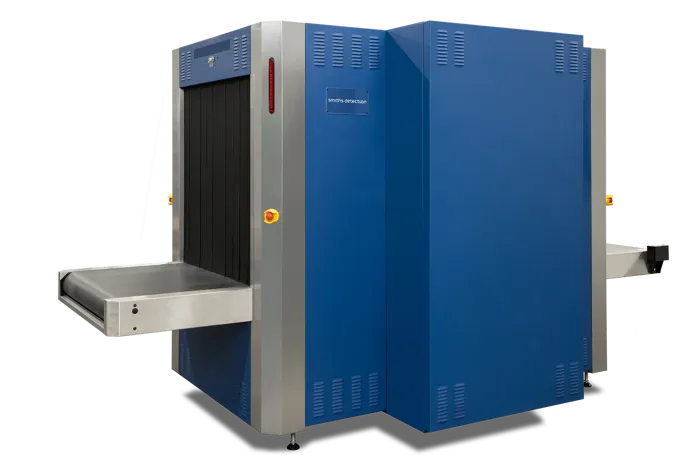

Smiths Detection SDX 100100 DV HC
Smiths Detection

SDX 100100 DV HCAvailable upon request

Advanced dual-view scanners for large objects

Product Description:

Dual-view high conveyor system for high-throughput cargo screening

The SDX 100100 DV HC is designed for operations requiring maximum security and speed when screening oversized baggage and break-bulk freight. Two 160 kV generators provide simultaneous horizontal and vertical imaging in one pass.

Feature Highlights

  • Dual-view technology for faster object assessment
  • High conveyor configuration for ergonomic handling
  • iCMORE option for weapons and lithium batteries
  • Wire resolution up to AWG 41 and steel penetration up to 37 mm

Technical Specification

Dimensions: 3,591 (L) x 1,765 (W) x 1,992 (H) mm
Maximum object size: 1,000 x 1,000 mm
Conveyor load: 200 kg

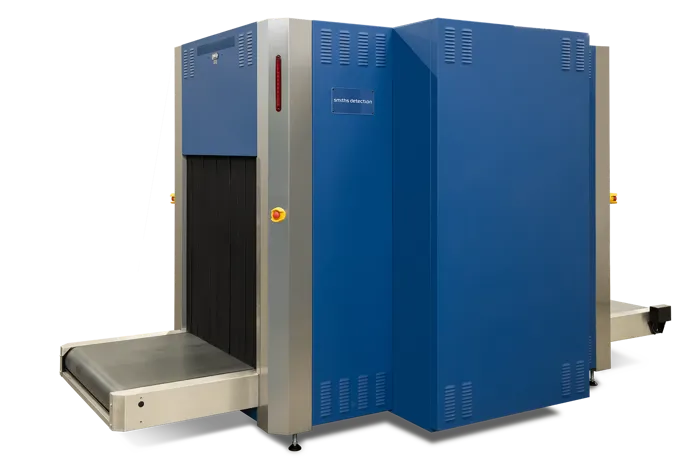

Smiths Detection SDX 100100 DV LC
Smiths Detection

SDX 100100 DV LCAvailable upon request

Advanced dual-view scanners for large objects

Product Description:

Dual-view low conveyor system for integrated freight handling

The SDX 100100 DV LC is a dual-view system for oversized baggage and break-bulk freight where low conveyor height is required for integration with feed and discharge systems. It provides horizontal and vertical images in a single scan.

Feature Highlights

  • Dual-view technology with two 160 kV generators
  • Low-profile conveyor for automated handling systems
  • Optional 0.5 m/s belt speed for high throughput
  • Wire resolution up to AWG 41 and steel penetration up to 37 mm

Technical Specification

Dimensions: 3,591 (L) x 1,860 (W) x 1,992 (H) mm
Maximum object size: 1,000 x 1,000 mm
Conveyor load: 200 kg

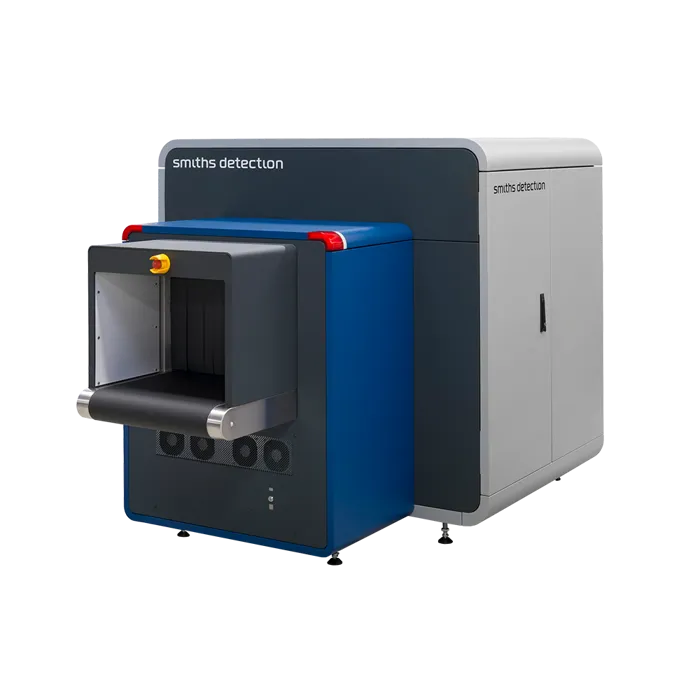

Smiths Detection HI-SCAN 6040 CTiX
Smiths Detection

HI-SCAN 6040 CTiXAvailable upon request

Advanced screening using CT technology

Product Description:

Computed Tomography screening for carry-on baggage

HI-SCAN 6040 CTiX uses Computed Tomography and automatic explosives detection algorithms to create high-quality 3D images of carry-on baggage in real time. It supports streamlined checkpoint screening without removing electronics, liquids and gels where approved.

Feature Highlights

  • ECAC EDS CB C3 approved and TSA APSS certified
  • Real-time 3D image generation
  • High throughput belt speed in its class
  • Low noise, zero vibration and open architecture support

Technical Specification

Dimensions: 3,300 (L) x 1,670 (W) x 1,670 (H) mm
Tunnel dimensions: 620 (W) x 420 (H) mm
Weight: approx. 2,450 kg

Smiths Detection iLane.evo
Smiths Detection

iLane.evoAvailable upon request

Smart automatic tray return system

An effective, automatic tray return system is a primary checkpoint component. By delivering a steady flow of trays, it plays a critical role in streamlining the screening process and delivering the subsequent benefits of increased throughput; optimized operational costs; and an improved passenger experience.

Innovation in lane design and function can remove bottlenecks and keep the process moving. The iLane.evo from Smiths Detection features the latest developments and addresses the key issues of passenger divestment; tray loading and return; re-routing suspicious items; and ‘reclaim’ space at the end of the checkpoint. The automated screening lane delivers improved productivity, higher throughput and reduced operational costs which represent the measures and benefits of optimum operational efficiency.

iLane.evo is modular in design, offering the flexibility to develop a variety of configurations to meet different requirements and can expand to handle increasing passenger traffic. It is future-proof with the capability to incorporate new inspection systems and functions. In order to ensure the best possible overall results, iLane.evo seamlessly integrates into the other checkpoint components.

Feature Highlights

  • Modular design
  • Motorized automatic tray return system
  • Various parallel divest options
  • Automatic bag diverter
  • Defined interfaces for remote screening integration
Smiths Detection iLane.pro
Smiths Detection

iLane.proAvailable upon request

Modular checkpoint

iLane.pro is a flexible, modular checkpoint designed to meet constantly evolving requirements.

Its wide variety of modular components – many of which can be upgraded – allows individually designed checkpoints that can be intelligently integrated into existing airport environments and infrastructure.

iLane.pro facilitates fast, passenger-friendly and cost-efficient processes with the highest levels of security.

Feature Highlights

  • Huge variety of modules
  • Modular passive and motorized conveyors
  • Gravity-driven manual tray-return system
  • Ready for remote-screening integration
  • Ideal for compact checkpoints or low- to medium-throughput checkpoints
Smiths Detection Checkpoint.Evo
Smiths Detection

Checkpoint.EvoplusAvailable upon request

Checkpoint management system

is a digital-led solution that helps checkpoints achieve the highest level of security and improved operations by delivering critical insights and enabling remote screening.

intelligence software analyses data from various systems, sensors and components from across an entire screening area to generate a full range of invaluable insights. This data makes it easy to monitor performance metrics in real-time for faster and better decision-making.

Consolidated KPIs provide an overall view of the system status with clear audio and visual notifications drawing attention to any changes in the customized performance thresholds. It also generates historical data and reports required for resource planning and general administration. KPIs can be monitored and shared via a central dashboard which can also be accessed from mobile devices.

Feature Highlights

  • Central screening and directed search
  • Fully supports CT (3D) technology
  • Aggregates data to deliver invaluable insights
  • Faster decision-making and optimized resources
  • Open interface for 3rd party integration
Smiths Detection MailGuard System
Smiths Detection

MailGuard SystemAvailable upon request

Complete mail room biothreat detection solution

The BioFlash®MailGuard System, is a ready to use mail screening solution for both packages and envelopes. Incorporating CANARY™ technology, the system provides rapid, sensitive, and specific identification of biological warfare agents that may be present in mail or packages coming into your facility.

The MailGuard incorporates the BioFlash®biological identifier, which detects and identifies specific biological agents with no need for sample manipulation or user interpretation. An easy-to-read LCD display provides test results immediately after analysis.

The complete system includes all components needed for operation including the BioFlash® pathogen identifier, downdraft booth, mail jogger, and compact refrigerator. And can connect to the Internet via an optional tethered laptop computer, which permits remote system diagnostics. Option for remote monitoring of test results with quarterly system reporting.

Feature Highlights

  • Captures particles up to 10 microns in size
  • Low operational and maintenance costs
  • Used by top government and commercial mailrooms
  • Easy to use and decontaminate
  • PCR levels of sensitivity and specificity
  • Extremely low false alarm rates

Technical Specification

Technology
Downdraft booth using forced airflow in addition to the BioFlash.
The BioFlash unit utilizing Cellular Analysis and Notification of Antigen Risks and Yields (CANARY), using genetically engineered immune cells.
Sampling
Large volume particle sampling using a blower that collects air from inside the downdraft booth.
Pathogen detection
Biothreats, Plant pathogens, Food pathogens and Human pathogens
Consumables
BioDisks, containing cuvettes
Analysis time
Approx. 2 minutes
Weight
BioFlash identifier - 15.9kg (35lbs)
Complete Unit - 362.8kg (800lbs)

Smiths Detection HCVM
Smiths Detection

HCVMAvailable upon request

Mobile high-energy inspection system

The HCVM X-ray screening system is designed for ease of operation and can be driven from location to location and be ready for use in less than 30 minutes.

The HCVM requires a minimal footprint and external infrastructure while still meeting the most demanding international security-screening requirements.

This system uses a range of accelerators from 4MeV to 6MeV and a variety of scanning modes. The combination of these capabilities with high mobility makes this product ideal for applications that require the quick and easy relocation of the screening checkpoint.

Feature Highlights

  • Throughput of up to 25 trucks an hour in mobile scanning mode and up to 100 trucks an hour in pass-through mode
  • Steel penetration up to 320mm (12.6in)
  • viZual technology for organic/inorganic material discrimination at 6MeV
  • Up to six scanning modes
  • Adjustable scanning heights and angles
  • Smiths Detection HCVM helps in Marseille’s largest cocaine seizure
  • 15 Mar 2022

Technical Specification

Minimum crew
1 image operator/system operator and 1 traffic marshal
Weight
Around 24/25 tons depending on variant
Scanning speed
24 m/min in mobile mode and 7km/h in pass-through mode
Operating temperature
-15° to 40°C (-30° to 55°C option available); -5° to 104°F (-22° to 131°F option available)

Smiths Detection HCVP
Smiths Detection

HCVPAvailable upon request

Drive through portal

HCVP is a drive-through portal for the inspection of trucks, containers and other vehicles, for explosives, drugs and weapons.

It can also provide manifest verification, reducing the need for manual inspections.

Its accelerators allow for steel penetration from 230mm (9in) to 300mm (11.8in) while providing a high throughput.

Feature Highlights

  • Throughput of 100 to 120 vehicles an hour
  • Small footprint
  • Quick and reliable search results

Technical Specification

Minimum crew requirements
1 traffic receptionist
1 system operator
2 image operators
Weight
12,000kg
Scanning speed
7km/5mph
Operating temperature
-20 to +40°C (-4 to +104°F)

Smiths Detection HCVG
Smiths Detection

HCVGAvailable upon request

Gantry inspection system

The HCVG X-ray system uses a single scan to screen whole trucks (cabin included), containers and vehicles for threats such as explosives, narcotics, weapons of mass destruction (WMDs), contraband, as well as manifest verification, reducing the need for manual inspection.

The system’s high-performance imaging capability provides the operator with detailed radioscopic images of container or vehicle and its contents, with organic and inorganic material discrimination and colorization based on atomic number, allowing for rapid and reliable results in a single scan.

The HCVG viZual series systems use an accelerator delivering an interlaced energy from 4/6MeV, allowing for steel penetration ranging from 320mm (12.6in) to 400mm (15.7in) while providing a high throughput of up to 23 trucks per hour.

Feature Highlights

  • Inspect loaded trucks, containers and vehicles at ports, airports and border crossings
  • High throughput of up to 23 trucks per hour
  • Steel penetration up to 400mm (15.7in) @ 6MeV
  • Adapted footprint and security perimeter
  • Provides a high performance imaging capability with organic/inorganic material discrimination and colorization in a single scan

Technical Specification

Minimum crew requirements
1 supervisor, 2 image operators, 1 traffic controller
Weight
27 tons
Scanning speed
24m/min (80fpm)
Operating temperature
-20 to +40°C (-4 to +104°F)
-40 to +40°C with the optional cold weather kit
-20 to +55°C with the optional hot weather kit
Steel ultimate penetration
HCVG 6032 viZual: 32cm@24m/min
HCVG 6035 viZual: 35cm@24m/min
HCVG 6040 viZual: 40cm@24m/min

Smiths Detection HCVT
Smiths Detection

HCVTAvailable upon request

Rail cargo inspection system

The HCVT side-view X-ray inspection solution analyses rail cars and wagons to reveal dangerous or illegal cargo, such as cigarettes, explosives, narcotics and weapons.

With its powerful 6MeV generator, the HCVT can scan up to 300 containers in 10 minutes. It has the ability to see through 300mm (11.8”) of steel, when a train is traveling at an optimal speed of 15km/hr.

Smiths Detection’s powerful DaiSy software provides operators with access to a variety of customizable image treatments, options and comparison tools to support effective interpretation of images and verification of cargo.

Feature Highlights

  • Helps to intercept dangerous goods and contraband transported by rail
  • Automates processes and links to Customs EDI networks and other HCV systems
  • Inspects rail cars and wagons traveling at a max. speed of 30 km/h
  • Ergonomic operator interface, delivering separate images for each wagon
  • No radioactive source used to emit X-rays

Technical Specification

Minimum crew requirements
1 supervisor, 1 image-selection operator, 2 image analysis operators
Scanning speed
15km/h
Operating temperature
-20° to +40°C (-4° to +104°F)
-25° to +40°C (-13° to +104°F) with the optional cold weather kit
-20° to +55°C (-4° to +131°F) with the optional hot weather kit
Steel ultimate penetration
HCVT 60: 30cm@15km/h

Smiths Detection HCVS
Smiths Detection

HCVSAvailable upon request

Stationary inspection system

The HCVS X-ray screening systems optimizes security checks at ports and border crossings by screening whole trucks (cabin included), containers, and vehicles for threats and illegal contraband. With the ability discriminate to different organic/inorganic materials, the HCVS reduces the need for manual inspection.

HCVS provides both a top and a side X-ray image of the truck scanned, assisting in detection an exact location of suspicious items. It is capable of penetrating

410mm (16.1in) of steel, and has a high throughput of up to 20 trucks per hour.

Feature Highlights

  • Inspect loaded trucks, containers and vehicles at ports and border crossings
  • Dual X-ray image analysis
  • High throughput of up to 20 trucks per hour
  • Steel penetration up to 410mm (16.1in) @ 9 MeV
  • Adapted footprint and security perimeter

Technical Specification

Throughput
20 trucks per hour
Steel penetration
Side view: up to 410mm (16in) Top view: up to 380mm (16in)
Minimum staff requirement
1 supervisor
3 image operators
1 traffic marshal
1 check-in operator
1 recheck operator

Smiths Detection HI-SCAN 10080 XCT
Smiths Detection

HI-SCAN 10080 XCTAvailable upon request

Advanced CT explosives detection system

The HI-SCAN 10080 XCT is a next generation high-speed, explosives detection system (EDS) for hold baggage and air cargo. It features a dual-view dual-energy X-ray line scanner with full 3D volumetric computed tomography (CT) imaging and reconstruction.

The HI-SCAN 10080 XCT has a belt speed of 0.5m/sec (98.5ft/min) and a large 107 x 81 cm (42.1 x 31.9in) rectangular tunnel. It is designed to be integrated into fully automated and networked baggage and material handling systems. This combination offers airports a throughput of up to 1,800 bags/hour and air cargo handlers the capability to screen 2,500 parcels/hour.

The HI-SCAN 10080 XCT has qualified under the U.S. Safety Act, which sets limited liability for claims related to terrorism. It is TSA certified for high-speed checked baggage screening and EU/ ECAC EDS Standard 3.0 and 3.1 as well as TSA ACSTL approved.

Feature Highlights

  • TSA certified for high-speed checked baggage screening
  • TSA ACSTL approved
  • EU/ ECAC EDS Standard 3.0 and 3.1 approved
  • Certified by STAC, DfT
  • Belt speed of 0.5m/sec (98.5ft/min)
  • Throughput of up to 1,800 bags per hour
  • Tunnel capable of screening objects 100 x 80cm

Technical Specification

Dimensions
5,450 (L) x 2,300 (W) x 2,160 (H) [mm]
214.6 (L) x 90.6 (W) x 85 (H) [in]
Max. object size
1,000 (W) x 800 (H) x 1,600 (L) [mm]
39.4 (W) x 31.5 (H) x 63 (L) [in]
Out-of-Gauge (OOG) version object length up to 3,800mm (149.6in)
Weight
7,730kg
17,041lbs

Smiths Detection HI-SCAN 10080 EDX-2is
Smiths Detection

HI-SCAN 10080 EDX-2isAvailable upon request

Automatic explosives detection system

Within the proven multi-level method of checked-baggage screening, all baggage is screened automatically for explosives by a high-speed Level-1 system, the EDX-2is. Bags cleared by EDX-2is continue to their determined destination while rejected bags are automatically diverted to a second security level for further inspection, significantly.

With a tunnel opening of 1070mm x 810mm, the EDX-2is allows the screening of oversized objects up to 3.8m, avoiding the need for alternative screening.

With its high detection capability, combined with a low false-alarm rate, the system can screen up to 1,800 bags per hour.

Feature Highlights

  • Dual-view system
  • Approved according to EU regulation 1448/2006 - Standard 2
  • Highest rate of detection in its class
  • Tunnel opening 100 x 80cm suitable for oversized luggage
  • Screening rate of up to 1,800 luggage items per hour
  • STAC and DfT certified

Technical Specification

Max. object size
1,060 (W) x 800 (H) x 3,800 (L) [mm]
41.7 (W) x 31.5 (H) x 149.6 (L) [in]
Dimensions
2,900 (L) x 2,140 (W) x 1,900 (H) [mm]
114.2 (L) x 84.3 (W) x 74.8 (H) [in]
Weight
approx. 3,000 kg
approx. 6,614 lbs

Smiths Detection HI-SCAN 145180-2is
Smiths Detection

HI-SCAN 145180-2isAvailable upon request

Large objects dual view scanner

The HI-SCAN 145180-2is has two 160kV generators in a 90

opposition providing a horizontal and vertical view of the object (dual-view) for shortened inspection time and high-quality images.

The tunnel dimensions of 1,450mm (57in) width and 1,800mm (71in) height is suitable for the inspection of air cargo transported on standard Euro, British or US pallets.

Feature Highlights

  • Universal X-ray system for palletised items
  • Dual view for shorter inspection times
  • Small-pitch roller conveyor, capacity 1,000kg/m – or up to 5,000 kg when evenly-distributed
  • Meets TSA requirements for max. skid size of 1.2 x 1.2 x 1.65 m
  • Typical penetration: 37mm steel
  • HI-MAT Plus technology for advanced material discrimination

Technical Specification

Max. object size
1,450 (W) x 1,800 (H) [mm]
57.1 (W) x 70.9 (H) [in]
Dimensions
5,545 (L) x 2,160 (W) x 2,545 (H) [mm]
218.3 (L) x 85 (W) x 100.2 (H) [in]
Weight
Approx. 3,000kg
Approx. 6,600lbs

Smiths Detection HI-SCAN 145180-2is pro
Smiths Detection

HI-SCAN 145180-2is proAvailable upon request

Fast, effective air cargo screening

The innovative air cargo screening system HI-SCAN 145180-2is pro meets the demand for fast turnaround, high levels of security and an attractive total cost of ownership (TCO).

This state-of-the-art scanner is equipped with two 200 kV X-ray generators, one of which is uniquely positioned under the conveyor belt, to deliver excellent penetration, superior image quality, more efficiency, and easy access for maintenance and service.

In-depth research and extensive testing were undertaken to establish the optimum generator design for a long lifespan. This is just one contributing factor in the impressively low TCO – others include cost of spare parts; easy service access; and, as space is such an expensive commodity, the particularly compact footprint.

Feature Highlights

  • Increases security and efficiency
  • Supports fast turn-around
  • Excellent penetration and superior image quality
  • Easy maintenance access
  • Compact footprint

Technical Specification

Max. object size
1450 (W) x 1800 (H) [mm] / 57.1” (W) x 70.9” (H)
Dimensions
6260 (L) x 2310 (W) x 2740 (H) [mm] / 246.5” (L) x 91” (W) x 107.9” (H)
Weight
approx. 4425 kg / 9750 lbs

Smiths Detection HI-SCAN 180180-2is pro
Smiths Detection

HI-SCAN 180180-2is proAvailable upon request

Advanced dual view X-ray cargo scanner

An X-ray scanner designed for the inspection of large-scale consolidated and palletised goods.

Tunnel dimensions of 180 x 180cm means the HI-SCAN 180180-2is pro is capable of screening LD3 containers.

Based on a dual-view concept, the system provides two sharp independent views of the screened goods and, as a result, it delivers more accurate and reliable image evaluation.

Feature Highlights

  • Dual view shortens inspection times
  • Beam geometry facilitates the detection of potential threats
  • Rugged roller conveyors accepts loads of up to 5 tonnes when evenly distributed
  • High-penetration capabilities to avoid disassembly into individual packages

Technical Specification

Max. object size
1790 (W) x 1700 (H) [mm]
70.5 (W) x 66.9 (H) [in]
70.5” (W) x 66.9" (H)
Dimensions
7200 (L) x 2650 (W) x 2900 (H) [mm]
280 (L) x 104 (W) x 114 (H) [in]
280" (L) x 104" (W) x 114" (H)
Weight
Approx. 9000 kg
Approx. 19,842lbs
Approx. 19842 lbs

Smiths Detection HI-SCAN 6040-2is HR
Smiths Detection

HI-SCAN 6040-2is HRAvailable upon request

Dual view X-ray inspection for carry-on luggage

An advanced dual-view X-ray inspection system for the automatic detection of solid and liquid explosives in personal belongings and cabin baggage. The HI-SCAN 6040-2is HR has an ergonomic design that makes it easy for the operator to identify threats on screen.

Approved for ECAC EDS CB C1 means that it can be used for the screening of checked cabin baggage. It also meets EU legislation for LEDS Standard

3 Type C – an extended approval as a Liquid Explosive Detection System (LEDS).

Feature Highlights

  • Compact footprint
  • Steel penetration of 35mm
  • Flexible design for easier installation
  • Dual view technology
  • Operator-friendly interface

Technical Specification

Dimensions
2,340 (L) x 1,314 (W) x 1,372 (H) [mm]
92.0 (L) x 51.7 (W) x 54.0 (H) [in]
(H)*Without monitors on top of the unit
Maximum object size
615 (W) x 410 (H) [mm] 24.2 (W) x 16.1 (H) [in]
Weight
Approx. 820kg
Approx. 1,808 lbs

Smiths Detection HI-SCAN 6046si
Smiths Detection

HI-SCAN 6046siAvailable upon request

X-ray inspection system

HI-SCAN 6046si produces extremely detailed X-ray images thanks to high-resolution XADA detector modules. The considerably enhanced image resolution of the scanned objects is a decisive advantage for security evaluation.

The HI-SCAN 6046si integrates with iLane.pro for individualized checkpoint designs and improved throughput.

It also has a higher tunnel opening and can therefore scan objects that exceed standard dimensions for hand luggage in the aviation industry.

Feature Highlights

  • Ideal for small or medium airports and building entrances
  • Produces extremely detailed X-ray images with XADA detector modules
  • 160kV generator can penetrate steel up to 37mm thick
  • Easily integrates with iLane checkpoint designs

Technical Specification

Dimensions
2,004 (L) x 850 (W) x 1,290 (H) [mm]
78.9 (L) x 33.5 (W) x 50.7 (H)
Max. object size
615 (W) x 455 (H) [mm]
24.2 (W) x 17.9 (H) [in]
Weight
approx. 400kg
approx. 881.9lbs

Smiths Detection HI-SCAN 5180si
Smiths Detection

HI-SCAN 5180siAvailable upon request

Airport check-in X-ray system

Designed for the screening of carry-on luggage at airport checkpoints, the HI-SCAN 5180si is equipped with an advanced multi-energy X-ray generator to provide drastically enhanced image resolution of the scanned objects.

Feature Highlights

  • High-resolution image display based on XADA sensor technology
  • Up to 37mm steel penetration
  • Wire detectability up to AWG 40
  • Tunnel height of 800mm

Technical Specification

Max. object size
510 (W) x 795 (H) [mm]
20.1 (W) x 31.3 (H) [in]
Dimensions
3,090 (L) x 1,452 (W) x 1,195 (H) [mm]
121.6 (L) x 57.2 (W) x 47.0 (H) [in]
Weight
approx. 600kg
approx. 1,322.8lbs

Smiths Detection B-SCAN
Smiths Detection

B-SCANAvailable upon request

Transmission X-ray people screening

The B-SCAN series helps to reduce the smuggling of drugs, weapons, mobile phones and other contraband.

It is available in four models, to support both general and limited-use applications, in accordance with ANSI N43.17 2009 guidelines.

General-use refers to screening systems that use extremely low X-ray dose rates to screen a person. The dose rate is so low that there is, in effect, no need to monitor the number of screenings an individual can have in a year.

Feature Highlights

  • Detects contraband and threat objects concealed in or on the body including weapons, explosives, narcotics, etc.
  • High throughput - scan time less than 7 seconds
  • Complete head-to-toe inspection even if shoes are worn
  • Very low dose rates
Smiths Detection CTX 5800
Smiths Detection

CTX 5800Available upon request

CT explosives detection system

ECAC Standard 3 approved and TSA certified, the

explosive detection system (EDS) quickly identifies threats in checked baggage.

Using a single X-ray generator, the unit’s design provides high-resolution 3D images for quick and accurate threat detection in space or weight restricted environments.

Feature Highlights

  • Threat detection in a small footprint
  • Belt speed 0.14m/s (400-450BPH)
  • Unlimited bag length (with curtain extensions)
  • Stand-alone and in-line configurations
  • Customized networking solutions
  • High resolution 3D images from a single X-ray source

Technical Specification

System dimensions (W x H x L)
1570 x 1550 x 2610mm (59.0 x 57.8 x 102.8in)
Tunnel structure
Cylindrical
Tunnel opening (max. width at conveyor edge)
750 mm (29.5in)
Conveyor height from floor
616 mm (24")
Maximum power rating
2.5kVA

Smiths Detection CTX 9800 DSi
Smiths Detection

CTX 9800 DSiAvailable upon request

High speed CT explosives detection system

explosive detection system (EDS) uses a proprietary single X-ray source, dual energy design that provides high-resolution 3D images along with 2D and 3D organic/inorganic material discrimination.

These imaging tools enhance the analysis of details and specific structures of suspected threats, allowing for efficient security decisions on all checked bags and cargo packages.

Built on a scalable platform with upgrade capabilities to meet future detection and capacity requirements, the CTX 9800 DSi can be integrated with any baggage-handling system.

Feature Highlights

  • Belt speed 0.3m/sec - 0.5m/sec (up to 1,800BPH)
  • Customized networking solutions
  • Intuitive user interface
  • Efficient power consumption
  • High resolution 3D images from a single X-ray source
  • Level-1 decision and Level-2 image made before bag exits the machine

Technical Specification

Overall dimensions (W x H x L)
2400 × 2177 × 4803mm
Tunnel structure
Rectangular
Tunnel opening (max. width at conveyor edge)
1020mm (40.2in)
Maximum power rating
24kVA

Smiths Detection ScanVan
Smiths Detection

ScanVanAvailable upon request

Mobile X-ray inspection system

A self-contained, mobile system for immediate and flexible screening anywhere temporary or additional security measures are needed. Ideal for on-the-spot security screening at ports and borders, airports, concerts, sports arenas, conference centers, campuses and theme parks.

At its core, ScanVan has a high powered, X-ray scanner for checking a wide-range of objects such as cargo, electronics, boxes, backpacks, luggage, baby buggies and much more. The vehicles include all the equipment needed to control the scanning process plus a powerful, motorized conveyor for easy loading and unloading. They can be driven without a commercial license.

Available according to geographical location, there are two models – ScanVan 8585 and ScanVan 100100 PRO.

Feature Highlights

  • Mobile, flexible security screening
  • Scans wide range of objects
  • Powerful X-ray generator
  • Penetration up to 35mm steel
  • On-board power generator
  • Insulation and air-conditioning
Smiths Detection ViZual
Smiths Detection

ViZualAvailable upon request

Organic/inorganic material discrimination

viZual imaging software helps to distinguish unexpected loads by adding color – linked to the atomic number – to the detailed radioscopic image of the container or vehicle, for rapid and reliable results in a single scan.

viZual can discriminate and highlight foreign objects such as explosives, drugs and plastics hidden among other cargo in cars, lorries and containers.

It also allows the operator to distinguish objects such as firearms, hidden in or among organic objects.

Feature Highlights

  • colorization
Smiths Detection DaiSy
Smiths Detection

DaiSyAvailable upon request

Detailed-analysis software platform

DaiSy is the software platform installed as standard on all our HCV cargo and vehicle inspection solutions.

It provides operators with a variety of customizable image treatments, options and comparison tools, to aid in the timely interpretation of images and the verification of cargo.

It quickly and reliably delivers detailed images for analysis, increasing cargo throughput and protecting borders and entry points against the illegal movement of contraband, alcohol, explosives, arms, dirty bombs and other illegal substances.

Feature Highlights

  • Ergonomic and intuitive GUI (no more than 2-mouse clicks to perform image analysis)
  • Increased operator efficiency due to a range of customizable tools
  • A full set of operator roles; check-in, image analysis, recheck, review
  • Customizable display configurations
Smiths Detection iCMORE
Smiths Detection

iCMOREAvailable upon request

AI-driven threat detection for every checkpoint

iCMORE is a family of AI-powered object recognition algorithms that automatically detect concealed threats and contraband in baggage, cargo, vehicles and containers.

Smiths Detection UrbanAware
Smiths Detection

UrbanAwareAvailable upon request

An advanced CBRN (Chemical, Biological, Radiological, and Nuclear) simulation and modeling software solution

Urban Aware is an advanced CBRN (Chemical, Biological, Radiological, and Nuclear) simulation and modeling software solution developed through a strategic partnership between Smiths Detection and Riskaware. UrbanAware revolutionises the way chemical hazard intelligence is delivered, especially in high-stakes, urban environments.

By seamlessly integrating Riskaware’s cutting-edge CBRN/HazMat Information Management (IM) system with Smiths Detection’s trusted LCD 4 chemical detector, UrbanAware collects, analyses, and delivers real-time incident intelligence directly to first responders and military planners. This state-of-the-art platform enhances decision-making at the tactical edge by closing the gap between data collection, analysis, and strategic awareness.

UrbanAware supports faster, more informed response strategies, making it an essential solution for defense and security organizations. Whether managing a chemical incident or preparing for future threats, UrbanAware is designed to protect people, environments, and infrastructure while addressing global challenges.

Feature Highlights

  • Real-time Chemical Hazard Detection
  • : Alerts are triggered through sensors, enabling quick identification and response to hazardous threats in the field.
  • Tactical Intelligence Delivery
  • : Threat analysis results are sent to ruggedised mobile devices with clear visualizations, including threat mapping relative to team positions.
  • Advanced Predictive Modeling
  • : With built-in simulation capabilities, UrbanAware can forecast the potential next stages of a chemical attack or industrial release, aiding in evacuation planning and cordon establishment.
  • Urban Optimization
  • : Designed specifically for complex urban environments, the platform accounts for the effects of streets, buildings, and population dynamics on hazard dispersion.
  • Proven Technology
  • : Riskaware's CBRN tools, validated in real-world scenarios, were originally developed by the Defense Science and Technology Laboratory (Dstl).
Smiths Detection SDX 10060 XDi
Smiths Detection

SDX 10060 XDiAvailable upon request

Advanced screening using X-ray Diffraction technology

The Smiths Detection SDX 10060 XDi leverages cutting-edge X-ray Diffraction (XRD) technology to offer unparalleled material discrimination and substance identification capabilities. By generating a unique 'diffraction fingerprint' for molecular structures, it can accurately distinguish between substances with similar densities, making it exceptionally effective for identifying homemade explosives and narcotics in various forms. This advanced detection system is especially beneficial for high-volume, high-speed applications such as hold baggage screening at airports and parcel processing, where it enhances security and operational efficiency.

The SDX 10060 XDi's ability to integrate with existing material and baggage handling systems allows it to handle alarm queries from multiple Level 1 scanners, significantly reducing manual checks and the overall false alarm rate. This automation not only saves substantial operational costs but also minimizes human error. It is designed to meet ECAC 3.1, 3.2 and TSA 7.2 and is also one of the few technologies likely to detect evolving threats and therefore meet future regulatory standards. The detection library will evolve over time ensuring your security operation remains future-proofed. Furthermore, its specialized detection capabilities are invaluable for customs agencies, offering adaptable and up-to-date screening for prohibited items, including narcotics.

Feature Highlights

  • Superior detection of specific materials, including homemade explosives.
  • Enhanced efficiency through automated handling of most alarm situations.
  • Significant reduction in false alarm rates.
  • Reduction in manual oversight leads to lower operating costs.
  • Advanced detection technology prepared for future security challenges.
  • Precise identification of narcotics and prohibited items with adaptability.

Technical Specification

System dimensions
5945 [L] x 2360 [W] x 2550 [H] mm
Tunnel dimensions
1050 [W] x 605 [H] mm
System weight
Approx. 8800kg (19400lbs)
Belt speed
0.1 - 0.2 m/s
Conveyor height from floor
880 mm
Maximum object size
1000 [W] x 600 [H] mm

Smiths Detection SDX 10080 SCT
Smiths Detection

SDX 10080 SCTAvailable upon request

Hold Baggage and Air Cargo Screening with Dual-Energy CT

The Smiths Detection SDX 10080 SCT builds on decades of expertise in Explosives Detection Systems (EDS) to deliver a new evolution in hold baggage and air cargo screening. Building on the proven heritage of the HI-SCAN 10080 XCT and CTX 9800, the system is ECAC EDS 3.1 approved and combines established design features with new advancements. It also provides a scalable platform designed to support evolving standards beyond ECAC EDS Standard 3.2 and TSA 7.3. At its core lies a dual-energy Computed Tomography (CT) scanner, designed to deliver outstanding detection performance

with an optional dual-view, dual-energy line scanner. while offering a future-proof system that adapts to evolving operational and

By uniting efficiency, accuracy and sustainability in a single platform,

Feature Highlights

  • Dual-energy CT + optional high-resolution dual -view line scanner
  • 3D and optional 2D high resolution color images
  • Belt speed of 0.5m/sec
  • Large square tunnel to screen objects up to 100 x 80cm
  • Scalable and adaptable modular design
  • Reduced energy consumption
  • Simplified cooling
  • Optional
  • iCMORE
  • algorithms for extended detection capabilities

Technical Specification

System dimensions
Without LS: 4568 [L] x 2182 [W] x 2167 [H] mm - With LS: 5450 [L] x 2182 [W] x 2167 [H]
Tunnel dimensions
1070 [W] x 810 [H] mm
System weight
Without LS: 6740 kg (14,867lbs) - With LS: 7890kg (17,392lbs)
Belt speed
0.5 m/s
Conveyor height from floor
Minimum 700 mm, 27.6"
Maximum object size
1000 [W] x 800 [H] x 1600 [L] mm , Out-of-Gauge (OOG) version object length up to 3800 mm

Smiths Detection MUX
Smiths Detection

MUXAvailable upon request

Networking systems

MUX allows multiple operators to view bags from single or multiple explosives detection systems, resulting in more efficient screening and better use of personnel.

With built-in redundancy to ensure network dependability, leading industry-standard switches and servers, and hot-swappable components to minimize downtime, our networking solutions help to increase security and to lower operational costs – while optimizing the use of critical personnel. Designed to be flexible and highly customizable, our infrastructure future-proofs your investment as your airport’s needs grow and change.

It is highly customizable to fit the exact needs of any airport, and flexible enough to accommodate new regulations or passenger growth.

Feature Highlights

  • Scalable, flexible solution for networking explosive detection systems
  • Highly customizable, site-specific network design
  • Multiple redundancies to minimize points of failure
  • Hot-swappable components with automatic failover
  • Centralized data collection and seamless integration of 2D and 3D images
Smiths Detection MatriX Server
Smiths Detection

MatriX ServerAvailable upon request

System management and image distribution system

The MatriX Server enables networking functions and software applications. It is the essential core of any networking solution in many different market sectors, including ports and borders, urban security, defense and, of course, aviation.

In aviation, the major applications supported by the server are system management and X-ray image distribution for hold baggage and checkpoint screening – driven by advanced screening and management platforms such as Checkpoint.Evo

It facilitates everything from small networks and functions such as centralized screening and real-time management data, to linking large, international airport groups. Up to 600 X-ray scanners can be supported by one MatriX Server.

Feature Highlights

  • Delivered complete, pre-configured and ready to go
  • A choice of sizes and functions to meet your requirements
  • Designed with a focus on advanced cyber security
  • Optimum image distribution and system control
  • Supports system management, statistics, reports and TIP
  • Central image storage
Smiths Detection incent.control
Smiths Detection

incent.controlAvailable upon request

Web-based system-management platform

A web-based management platform for CXS/EDS networks, incent.control provides mobility, flexibility, cost reduction and IT security to those responsible for managing security checkpoints, explosives detection systems or any other

Smiths Detection sensor product.

Can be used for checkpoints, hold-baggage screening systems, X-ray units, trace products and other sensors.

Feature Highlights

  • Provides system status and performance information
  • Accessible from any computer with web browser, including tablets
  • Web-based, means no specific software installation on client required on specific devices
  • Intuitive user interface
  • All communications are encrypted, meeting current IT security standards
Smiths Detection incent.view
Smiths Detection

incent.viewAvailable upon request

3D & 2D analyst and recheck workstation

Incent.view 2D/3D capable workstation allows for high-quality on-screen image resolution combined with ergonomic and intuitive operation.

Incent.view’s image-evaluation features include infinite zoom, single-alarm processing, color intensity and gray-level absorption, and the full set of HI-TraX-based X-ray units.

Marking and annotation of suspicious areas, workflow integration as Analyst (remote screening) and Recheck, and configuration as either a 2D or 3D workstation are available.

Feature Highlights

  • Excellent image quality for efficient and reliable on-screen resolution
  • Fast and easy image analysis through various image-manipulation functions
  • Intuitive operation
  • Touchscreen-capable
  • Compatible with Checkpoint.evo
  • plus
  • , HI-SCAN 10080 XCT, and all other HI-SCAN units.
