Cable

5 products from Ramcro

Ramcro

Flexible

and solid cables for alarm systems type LiYu(St)Yu

Product Description:
These cables have been designed for installation in fire detection and alarm systems. They are being used for the connection of smoke detectors and barrier smoke detectors to the switchboard.

Product Features:

Bare copper conductor flexible or solid
Insulation: PVC flame retardant acc. to CEI 20-22 II° and IEC 332-3C, colour coded
Screen: Al /polyester foil, coverage > 100%
Drain wire in bare copper (flexible for flexible types and solid for solid types)
Rip cord
Jacket: PVC flame retardant acc. to CEI 22-22 II° and IEC 332- 3C, white RAL 9010

Manufacturer page ›Ask about this product ›

Ramcro

Fire

alarm cables

Product Features:

Bare copper conductor flexible or solid
Insulation: PVC flame retardant acc. to CEI 20-22 II° and IEC 332-3C,
Conductor: twisted with narrow pitch
Screen: Al /polyester foil, coverage > 100%
Drain wire in bare copper
Jacket: PVC flame retardant acc. to CEI 22-22 II° and IEC 332-
3C, red RAL 3000 or blue RAL 5015

Manufacturer page ›Ask about this product ›

Ramcro

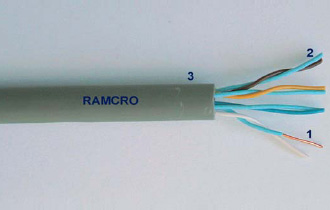

Telephone

cables for indoor and outdoor use

Product Description:
Telephone cables for indoor and outdoor use

Product Features:

Solid bare copper conductor 0,6 mm
Insulation: PVC flame retardant acc. to CEI 20-22 II° and IEC 332-3C,
Screen: Al /polyester foil, coverage > 100% for TESA
Solid tinned copper drain wire for shielded cables
Jacket: flame retardant PVC acc. to IEC 332-1 and IEC 332- 3C, grey RAL 7001 or ivory RAL 9010

Manufacturer page ›Ask about this product ›

Ramcro

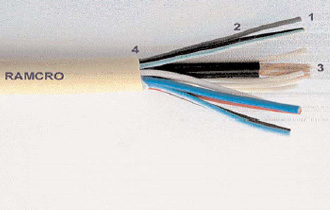

Cables

for video surveillance systems

Product Description:
Cables for video surveillance systems

Product Features:

Bare copper conductors, flexible or solid
Insulation: PVC flame retardant acc. to CEI 20-22 II° and IEC 332-3C
Coaxial cable 75 Ohm for video signal transmission
Jacket: PVC flame retardant acc. to CEI 20-22 II° and IEC 332-3C, grey RAL 7001 or ivory RAL 9010

Manufacturer page ›Ask about this product ›

Ramcro

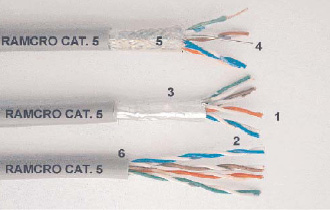

Computer

and data cables for local area networks (LAN)

Product Description:
Computer and data cables for local area networks (LAN)

Product Features:

Conductor: bare solid copper Ø 0.51 mm (AWG 24); Insulation:polyethylene
1°Screen:overlapping each pears with polyester foil
2°Screen: overlapping All/polyester foil for FTP and
All/polyester foil plus tinned copper braid for SFTP
Drain wire: bare solid copper Ø 0.57 mm (AWG 23)
Jacket: flame retardant PVC acc. to CEI 20-22 II° and IEC 332- 3C, grey RAL 7001

Manufacturer page ›Ask about this product ›
