Wiring accesories

PRODUCT SPECIFICATIONS:

Material Specification:
Natural Nylon:
KSS standard cable ties made from U.L. approved nylon 6/6.
Normal service temperature range: -40oC to 85oC. Flambility rating: UL 94V-2.
Black Nylon:
(Material and temprature as above) Except in black color.
For your order please add "B" to standard item no. i.e.CV-075B.
Weather Resistant Nylon(ULTRA VIOLET):
Carbonate "A" was added for greater resistance to ultra violet light in outdoor application.
For your order, please add "W" to standard item no. i.e. CV-075W
Heat Stablized Nyoln:
Service temp. 135oC
Specification:
Made to comply with mil-spec drawing no. MS-3367 tensile strength meet or exceed
MIL-S-23190E standard.

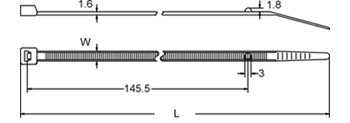

Item No.

L · W · Max. Bundle Dia. · Min. Tensile strength

100pcs

mm · mm · mm · lbs(kg) ·

100pcs

CV-200A

203 · 3.6 · 52 · 40 (18)

CV-250M

250 · 3.6 · 68 · 40 (18)

CV-265

265 · 3.6 · 73 · 40 (18)

CV-368S

368 · 3.6 · 105 · 40 (18)

PRODUCT SPECIFICATIONS:

Material: UL approved Nylon 66, 94V-2
To apply with KSS nylon cable ties:
HC-0: CV-075, 094, ... 280, 310
HC-1: CV-075, 094, ... 280, 310
HC-2: All applicable sizes
Saddle design provide maximum stability to wire bundles.
To apply, simply fix mount with a screw and secure wire bundles
with KSS nylon cable ties.

ITEM No.

H · L · W · T · B · Packing

HC-1

7 · 15 · 10 · 5 · 3 ·

100pcs

HC-2

9 · 23 · 16 · 9 · 6

PRODUCT SPECIFICATIONS:

Material: Impact Reasistant P.E. (Grey)
Appiled for general round cables.
With nails inserted
Black, White color available.

Item No.

W · H · H1 · Nail(mm) · Packing

NC-0.275N

2.75 · 4.5 · 2.6 · 1.65X19 ·

100pcs

NC-0.35N

3.5 · 5.9 · 3.7 · 2.0X15

NC-0.4N

4 · 6.6 · 4.2 · 2.5X18

NC-0.5N

5 · 7.6 · 5.3 · 2.5X18

NC-1N

6 · 9 · 6.6 · 2.0X20

NC-1.5N

7 · 11 · 7.2 · 2.5X22

NC-2N

8 · 11.5 · 8.6 · 2.5X22

NC-3N

10 · 13.4 · 10.5 · 2.5X25

NC-4N

12 · 16.0 · 12.5 · 2.5X27

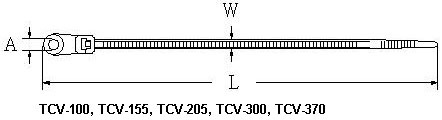

PRODUCT SPECIFICATIONS:

Material: UL approved NYLON 66,94V-2
Color: Natural white (Available in black)
The cable tie can be secured to panel with a single bolt

Item No.

L
(m.m.) · W
(m.m.) · A
(m.m.) · Max. Bundle Dia. · Min.Tensile Strength · Packing

lbs

kgs

TCV-205

205 · 4.2 · 4.6 · 60 · 50 · 22 ·

100pcs

TCVS-170

171 · 3.7 · 4.0 · 40 · 40 · 18
