EFC-1903X
19" CCTV LCD |
|
|
 |
Product Description:
- Space-Saving Flat Panel Design
- One Looping Composite Input & Output and S-Video Input
- One Audio Input and Output
- VGA Input
- 3-D Digital Comb Filter for High Quality Video
- Digital DVI Input *Optional
- 100/240 VAC, 60/50Hz Autoranging Power Supply
- Internal Speakers
|
|
Specifications
| Video |
NTSC / PAL |
| Power Source |
12V DC / 4.12A |
| Power Consumption |
50 W |
| Colors |
19" |
| Max. Resolution |
1,280 x 1,024 @75Hz |
| Pixel Pitch (mm) |
0.294 x 0.294 |
| Display Colors |
16.7 M |
| Brightness |
300 cd/m2 |
| Contrast Ratio |
500:1 |
| Response Time |
25 ms |
| Viewing Angle (H/V) |
130 / 140 |

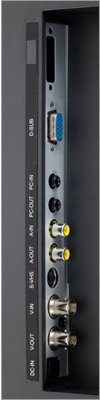

| Inputs & Outputs |
2 BNC In & 2 BNC Out,
1 S-Video In,
1 VGA (15 Pin D-sub),
1 DVI * Optional |
| Audio |
1 RCA In & Out |
| Speakers |
2W x 2W speaker |
| Dimension (W x H x D) |
408 x 420 x 224 mm ( 16.1" x 16.6" x 8.8" ) |
| Weight (Product /Shipping) |
4 Kg ( 8.8 lbs ) / 4.5 Kg ( 9.9 lbs ) |
| Wall hanging |
Yes |
|
|
 |
| |
|
|
|
|
|
|
A19A1-3D
19" CCTV LCD |
|
|
|
Product Description:
- The best display for CCTV cameras, DVR, multiplexer and other surveillance equipments.
- POS / ATM terminals.
- 3D comb filter High quality motion adaptive
- 4H comb filter adaptive for the best image quality
- 3D noise reduction
- 2 BNC INPUT , 1 BNC OUTPUT ; LOOPING FUNCTION
|
|
Functions
| Display Type |
19" Active Matrix TFT LCD Module |
| Pixel Pitch |
0.294(H) x 0.294(V) mm |
| Resolution |
1280(H) x 1024(V) SXGA |
| Colors |
16.2 million colors |
| Contrast Ratio |
500:1 (Typical) |
| Brightness |
300 Cd/m2 |
| Response time |
8 ms |
| Display area |
376.32mm(H) x 301.056mm(V) |
| Composite Inputs |
(VGA)x1,(S-Video)x1,(RCA)x2,(PC Audio)x1,(BNC)x2 |
| Composite Outputs |
(BNC)1x,(EAR phone)1x |
| Speaker |
2.5W x 2 |
| Power consumption |
40W in "ON" mode |
| Wall hanging |
Yes |
| Auto adjustment |
Yes |
| Viewing Angle
(H/V） |
U/D:75°/75°，L/R:80°/80° |
| OSD Control |
Contrast, Brightness, Clock, Phase, H-Position, V-Position, Language. |
| OSD Language |
English, Germany, French, Italian, Spanish |
| Dimensions |
430(W) x 414(H) x 30(D) mm |
| Accessories |
Power cord, Adapter, User’s guide, Audio cable |
| Weight |
Net : 5.8 kg Gross : 7.5 kg |
| Speaker |
Multimedia Speakers |
| Display area |
376.32(W) x301.056(H) |
| Certificate |
Energy Star, UL/CUL, FCC-DOC, TUV/GS, CE, ICES, BSMI, VCCI |
|
|
|
| |
|
|
|
|
|
|
|
  |
|
